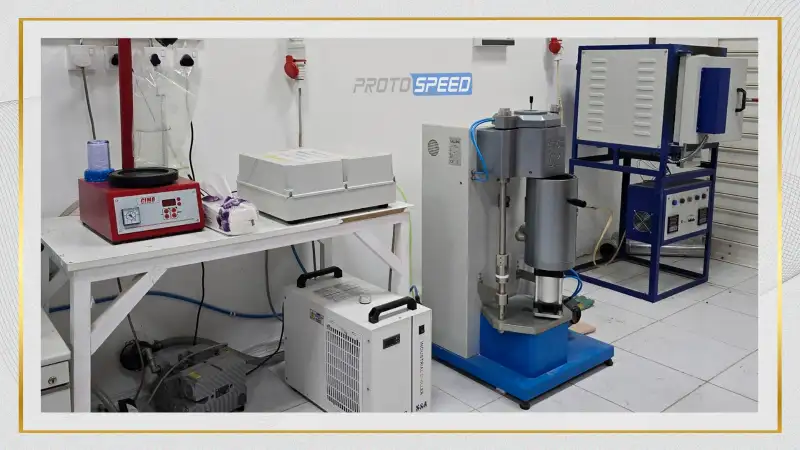

EQUIPMENT REQUIRED FOR A CASTING SETUP FOR JEWELRY

A vital step in producing complex and superior jewelry products is casting. The proper equipment is necessary to guarantee productivity, safety, and consistent outcomes whether you're running a small business or a large production facility. This blog outlines the essential equipment required by a typical jewelry casting setup, along with its significance and use.

1. CASTING MACHINE

The jewelry casting system is fundamentally centered around the casting machine. The metal (such as gold, silver, platinum, or brass) is melted and injected into the mold cavity. There are numerous types of casting devices, such as:

• Centrifugal Casting Machines: Centrifugal casting machines employ centrifugal force to propel molten metal into molds.

• Vacuum Casting Machines: They depend on vacuum pressure to ensure mold filling and reduced porosity.

• Induction Casting Machines: They employ electromagnetic fields to ensure uniform and efficient melting.

The selection of the appropriate casting machine is contingent upon the desired precision, metal type, and production scale.

2. INDUSTRIAL CHILLER (TO MAINTAIN THE COOLNESS OF THE CASTING MACHINE)

In continuous or high-temperature operations, industrial chillers are essential for chilling the casting machine. Inadequate cooling might cause the machine's parts to overheat, which could result in damage or inefficiencies.

Chillers use chilled water or liquids based on glycol to circulate through the machine's cooling lines, maintaining a constant operating temperature. This guarantees reliable casting performance and extends machine life.

3. VACUUM MIXER

A slurry for mold production is produced by combining distilled water and investment powder using a vacuum mixer. Air pockets are eliminated during vacuum mixing, which can result in defects in the final casting and mold.

• The primary advantages of a vacuum mixer are as follows:

• Enhanced the surface finish and robustness of the mold.

• Decreased likelihood of air pockets or vulnerable points.

• In addition to being quicker, cleaner, and more consistent, mixing.

It is an essential tool for the successful fabrication of high-quality molds in jewelry casting.

4. WEIGHT SCALE (TO MEASURE INVESTMENT POWDER)

When combining investment powder and water, precision is of the utmost critical importance. Using a digital weight scale makes sure that the right ratio is always used, which is important for uniform mold properties and burnout performance.

Locate a scale that includes:

• High precision (ideally within ±0.01g).

• Sufficient capability for the volume of your manufacturing.

• Quick calibration and long-lasting construction quality.

This easy-to-use tool is essential for preventing casting problems brought on by incorrect investment ratios.

5. DISTILLED WATER

When you mix investments, using distilled water instead of tap water keeps contaminants from interfering with the chemical setup. Investment powder can react with tap water, which frequently contains minerals and compounds, resulting in:

• Mold structures that are susceptible to damage.

• Imperfections on the surface.

• Burnout outcomes are inconsistent.

Distilled water guarantees the optimal performance, consistency, and purity of investment materials.

6. QUENCHING TOOLS (PPE & EQUIPMENT)

Quenching the hot flask in water after casting helps to quickly cool the metal and remove the investment material. The right equipment and safety measures are needed for this phase.

Crucial tools for quenching include:

• Gloves that can withstand heat.

• Face shields and safety goggles.

• Flask lifters or tongs with a long handle.

• A bucket or quenching tank composed of a heat-resistant substance.

The high temperatures of the flasks and the steam produced during quenching make personal protective equipment (PPE) an absolute need at this point.

7. PICKLER MACHINE (FOR THE REMOVAL OF OXIDATION)

Surface oxidation or fire scale is frequently observed on cast jewelry pieces after they have been quenched. The metal surface is cleaned by a pickler machine, which employs a heated corrosive solution (usually a diluted sulfuric acid or citric acid).

Advantages of employing a pickler:

• Restores the metallic finish to its original brightness.

• Prepares items for additional processing or refining.

• Operates effectively with minimal manual intervention.

When operating a pickler machine, it is imperative to maintain adequate ventilation and wear suitable personal protective equipment.

8. WATER JET (TO WASH INVESTMENT FROM CASTING TREE)

Once the casting tree has been quenched, any leftover investment material is removed using a water jet or pressure washer. This guarantees:

• Cast items are thoroughly cleaned when a water jet is used, producing cleaner and more elegant results.

• The water jet improves visibility by efficiently eliminating investment material, enabling more precise quality inspections.

• Any remaining residue won't interfere with the finishing or polishing process if the investment is completely removed.

When washing fragile jewelry, use a pressure-controlled water jet to prevent damage.

9. KILN (OVEN FOR BURNOUT)

The kiln or burnout furnace is employed to remove wax from the invested mold, thereby creating a suitable cavity for casting. In addition, it fortifies the mold prior to the pouring of molten metal.

Key characteristics of a casting kiln include:

• Control of temperature through programming.

• Uniform burnout is achieved through the use of multiple thermal zones.

• Energy efficiency is achieved through appropriate insulation.

In order to eliminate wax and carbon residues, a typical burnout cycle entails progressively raising the temperature to approximately 700-800°C.

10. EXHAUST SYSTEM FOR KILN

Fumes, wax vapor, and possibly hazardous gases are produced during burnout. A well-functioning exhaust system is necessary for:

• Clearing the kiln of fumes and smoke.

• Keeping the workplace breathable and safe.

• Defending employees from chronic exposure to harmful toxins.

Depending on local environmental standards, the exhaust system should have ducting, a fume hood, and filtering or scrubbers.

IN CONCLUSION,

The establishment of a casting station for jewelry production necessitates the meticulous selection of equipment that is both safe and efficient. The overall quality and safety of the process are significantly influenced by each component, which ranges from the casting machine to the exhaust system. Investing in the correct tools improves product quality, equipment life, and team safety.

This checklist is a valuable resource for ensuring that your casting equipment is suitable for professional production and that you make informed purchasing decisions when establishing a new business or upgrading an existing one.
