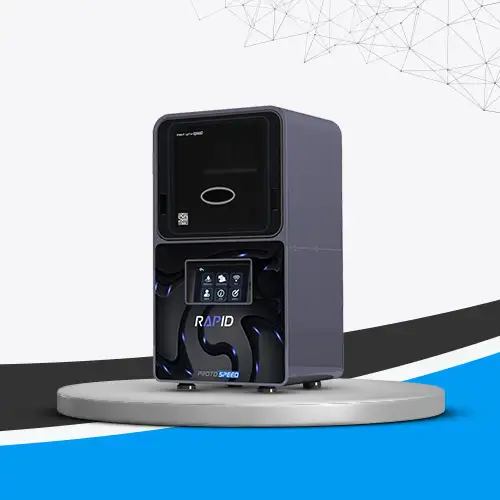

Rapid: The Fastest DLP 3D Printer for Jewelry Casting
Rapid is the fastest DLP 3D printer, with a printing capability of 50-65mm per hour at a 50µm layer thickness. Supported by Pixel Optimization, it has an XY resolution of 49 µm. The Light Engine enhances the quality of prints with smoother surfaces and crisp details, operating 24/7 and supported by high-tech castable resins with high wax content offered by Protospeed. Rapid is designed to easily integrate into jewelry manufacturing workflows with its compact size and user-friendly interface. It comes with a long-life VAT capable of handling over 1000 printing jobs, eliminating the need for frequent platform calibrations and tray changes. The Body to Platform Ratio of Rapid allows it to be one of the few DLP 3D Printers that can print entire 200mm Glass Bangles, Casting Trees, Rings, Chains, and Bracelets while maintaining such a compact size. When compared to Magnus, Rapid has a bigger platform and smaller pixels, making it suitable for midrange to high-production jewelry factories.
Download BrochureFull Specifications
| Built Volume X,Y,Z Version 1 & Version 2 | 190 x 107 x 200mm V1 | 160 x 90 x 200mm V2 |
|---|---|
| Pixel Size Version 1 & Version 2 | 49um | 40um |
| Technology | DLP |
| Led Wavelength | 405nm |
| Production | Jewelry, Dental & Industrial |
| Software | Protospeed Composing Software |
| File Inputs | STL |
| Network Compatibility | Wi-Fi, Ethernet |
| Power Requirements | 100 - 240VAC, 50/60Hz, 500watts |
| System Sizing | 482 x 394 x 845mm (47Kg) |
| Packed Sizing | 593 x 504 x 970mm (56Kg) |
| Warranty | 12 months manufacturer warranty |
| Technical Support | Unlimited Lifetime Technical Support Included |
| Bundle Includes | "3d printer, Support & Slicing Software, 1kg Resin, 1 long-life tank" |
Rapid Production Capabilities
Discover Rapid's Production capabilities with the gallery of all printed items.
- all
- Photos
- Videos
Frequently Asked Questions About the Rapid DLP 3D Printer
How fast does the Rapid 3D printer print?
The Rapid prints at 50–65 mm per hour at a 50µm layer thickness. In real production, this translates to 30 rings in 30 minutes, a full platform of small glass bangles in 50 minutes, or a full platform of chains in 25 minutes , making it one of the fastest DLP 3D printers available for jewelry.
What is the build volume of the Rapid?
The Rapid is available in two versions: Version 1 offers a build volume of 190 × 107 × 200 mm, and Version 2 offers 160 × 90 × 200 mm. Both versions feature a 200 mm Z axis, allowing full-length casting tree printing and even complete 200 mm glass bangles in a single run.
What types of jewelry can the Rapid print?
The Rapid can print rings, chains, bracelets, pendants, bangles (including 200 mm glass bangles), earrings, and full casting trees. Its large body-to-platform ratio allows it to handle both intricate small pieces and large-format production items, making it suitable for midrange to high-production jewelry factories.
What resolution does the Rapid achieve?
The Rapid achieves an XY resolution of 49 µm (Version 1) and 40 µm (Version 2), with a Z-axis layer thickness of 50 µm,which is enough for Jewelry Manufacturing. Pixel Optimization technology further enhances detail, producing smooth surfaces and crisp edges required for high-quality jewelry casting patterns.
What resins are compatible with the Rapid?
The Rapid is designed to work with Protospeed's ProtoResins high-wax-content castable resins engineered for clean burnout during investment casting. These resins are formulated specifically for jewelry manufacturing, ensuring accurate gauges, consistent weights, and smooth surface finishes for casting-ready patterns.
How does the Rapid compare to the Magnus?
The Rapid has a larger build platform and smaller pixel size than the Magnus, making it ideal for midrange to high-volume production. The Magnus (134 × 75 × 112 mm build volume) is a compact, affordable entry-level option, while the Rapid is suited for factories that need higher throughput and larger print capacity.
How long does the Rapid's projector and VAT last?
The Rapid uses a DLP projector with a 20,000-hour lifespan significantly longer than LCD screens found in consumer printers, which typically last around 2,000 hours. The long-life VAT can handle over 1,000 printing jobs, minimizing downtime from tray changes and platform recalibrations.
What software and file formats does the Rapid support?
The Rapid comes with Protospeed Composing Software for slicing and print preparation. It accepts STL files, the standard format exported by all major jewelry CAD programs including RhinoGold, MatrixGold, 3Design, and CounterSketch. The printer connects via both Wi-Fi and Ethernet for flexible workflow integration.
